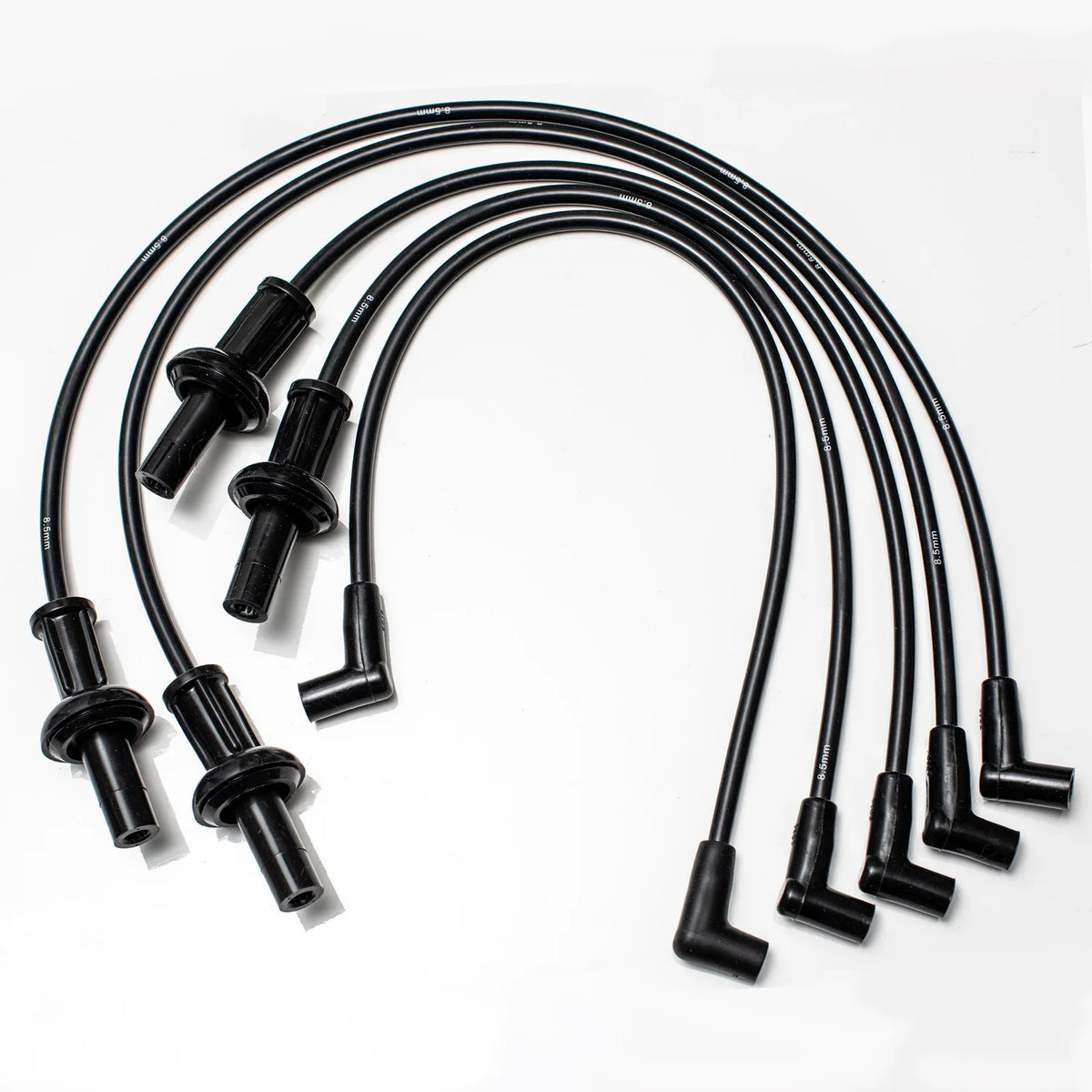

King Performance 8.5mm Spiral Core Spark Plug Wires for HEI-Style Cap & Coil
If you have moved your air-cooled VW to an HEI-style distributor and high-output coil, the wires are the part that still has to carry that extra spark to the plugs. King Performance built this 8.5mm spiral-core set for that job: low-resistance core, heavy plug ends, and a plain black jacket with no brand name printed on it, so the engine bay stays clean.
Fitment
Made for air-cooled VW four-cylinder engines running an HEI-style distributor cap and coil, such as the billet HEI-type distributors and high-output coils popular on Beetle, Karmann Ghia, Thing, Type 1-engined Bus and dune buggy builds. King lists the coil end as an HEI male-style end; a female coil-end version is listed as coming soon. If your coil has a different terminal, contact us before ordering. A stock Bosch-style cap and coil need a standard 7mm set instead.
Features
- 8.5mm spiral-core wire rated by King at less than 60 ohms per foot, which King says is about three times better than other wires on the market.
- Strong plug ends designed to hold up to repeated removal during tune-ups.
- Plain black finish with no brand name for a clean, understated look.
- Complete set: four plug wires plus a 23 inch coil wire.
Specifications
| Brand | King Performance |
|---|---|
| Wire diameter | 8.5mm |
| Core | Spiral core |
| Resistance | Less than 60 ohms per foot (King rating) |
| Terminal style | HEI-style cap and coil; coil end is HEI male-style |
| Color | Black, no printed brand name |
| Includes | 4 spark plug wires + 1 coil wire |
| Coil wire length | 23 in |
| Plug wire lengths | Not published by King |
| Use | Off-highway use only (King) |
Installation Notes
- Swap one wire at a time so the firing order stays correct.
- Push each boot fully onto the plug and cap tower until it seats; a half-seated boot can arc.
- Route wires away from the exhaust and heater boxes and keep them from rubbing on the tin.
- The cap and coil in King's photos are examples only and are not included.
Frequently Asked Questions
What comes in the King 8.5mm plug wire set?
Four spark plug wires and one coil wire. The coil wire is 23 inches long. The distributor cap and coil shown in King's photos are for illustration only and are not included.
What cap and coil do these wires fit?
They are built for an HEI-style distributor cap and coil. King lists the coil end as an HEI male-style end and says a female coil-end version is coming. Check your coil's terminal style before you order, or send us a photo and we will confirm.
What is the resistance of these wires?
King rates the spiral-core wire at less than 60 ohms per foot, which he says is about three times better than other wires on the market.
Will these work with my stock points distributor?
Only if your cap and coil use HEI-style terminals. A stock Bosch-style cap and coil take a standard 7mm wire set with different ends.
Do the wires have a brand name printed on them?
No. King describes them as plain black with no brand name, for a clean look in the engine bay.
Are these street legal?
King sells them for off-highway use only. Check your local rules before using them on a road vehicle.
How long are the four plug wires?
King does not publish the plug-wire lengths, only the 23 inch coil wire. If you have an unusual coil or distributor location, contact us before ordering and we will check with King.
